UIYDI3232A

by Drop-in-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Isolator for global customers. UIYDI3232A is a Drop in Isolator in Frequency Range of 0.7~3.1 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 30%, Insertion Loss Max is 0.20~0.50 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 200 W.

Product Specifications

Product Details

  • Part Number
    UIYDI3232A
  • Description
    0.7 to 3.1 GHz Drop in Isolator

General Parameters

  • Frequency Range
    0.7~3.1 GHz
  • Bandwidth Max
    30%
  • Insertion Loss Max
    0.20~0.50 dB
  • Isolation Min
    18.0~23.0 dB
  • Forward Power
    200 W
  • Reverse Power
    30 W
  • VSWR Max
    1.15~1.30
  • Impedance
    50 Ω
  • Connector Type
    TAB

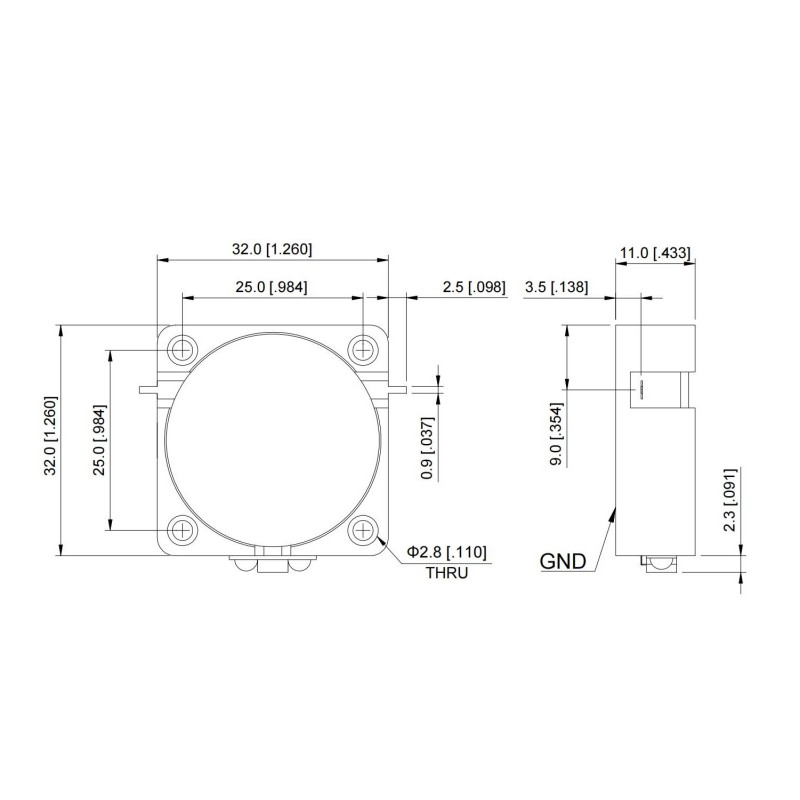

  • Size
    32×32×11 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
