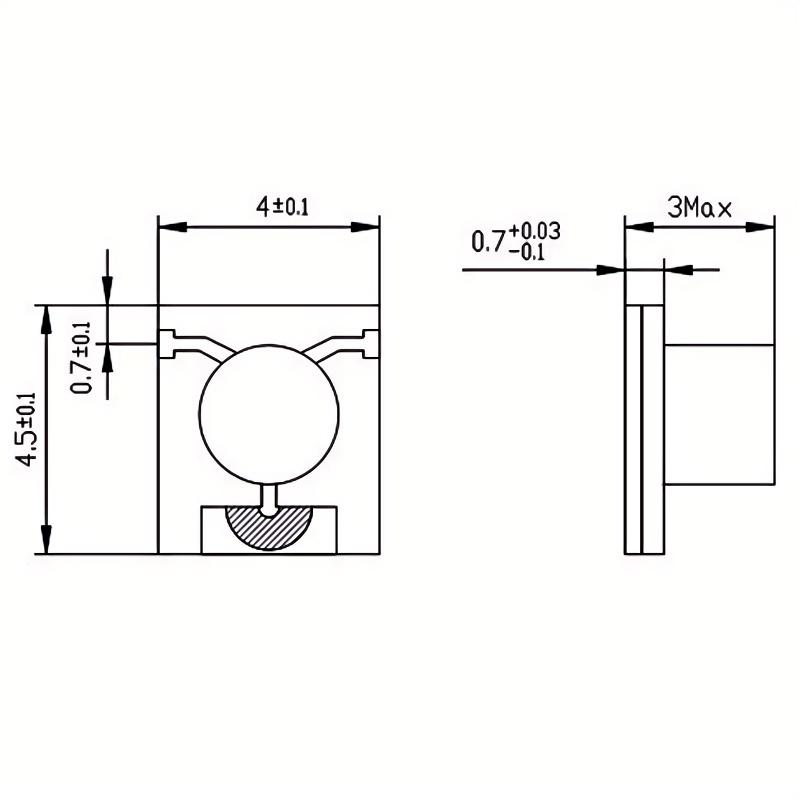

RF Solution offer a wide selection of Microstrip Isolator for global customers. MG0445-07 is a Microstrip Isolator in Frequency Range of 18.5~25.0 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 0.50~0.60 dB, Isolation Min is 18.0~20.0 dB and VSWR Max is 1.20~1.35. The component has a good working performance and stability, it is ideal for handling a Forward Power of 10/20 W.
| Part Number | Frequency Range (GHz) | Insertion Loss Max (dB) | Isolation Min (dB) | VSWR Max | Forward Power (W) | Reverse Power (W) | Choose |
|---|---|---|---|---|---|---|---|
| MG0445-07-X/18.5-20.5GHz | 18.5-20.5 | 0.50 | 20.0 | 1.25 | 20 | 1 | |
| MG0445-07-X/19.5-21.5GHz | 19.5-21.5 | 0.50 | 20.0 | 1.25 | 10 | 1 | |
| MG0445-07-X/17.0-21.0GHz | 17.0-21.0 | 0.60 | 18.0 | 1.35 | 10 | 1 | |
| MG0445-07-X/18.0-22.0GHz | 18.0-22.0 | 0.60 | 18.0 | 1.35 | 10 | 1 | |
| MG0445-07-X/20.0-22.0GHz | 20.0-22.0 | 0.50 | 20.0 | 1.25 | 10 | 1 | |
| MG0445-07-X/20.0-24.0GHz | 20.0-24.0 | 0.60 | 18.0 | 1.35 | 10 | 1 | |
| MG0445-07-X/21.0-23.5GHz | 21.0-23.5 | 0.50 | 20.0 | 1.20 | 10 | 1 | |
| MG0445-07-X/22.0-24.0GHz | 22.0-24.0 | 0.50 | 20.0 | 1.30 | 10 | 1 | |
| MG0445-07-X/23.0-25.0GHz | 23.0-25.0 | 0.60 | 20.0 | 1.30 | 10 | 1 |
