BG3838-WR140

by Waveguide-Isolator

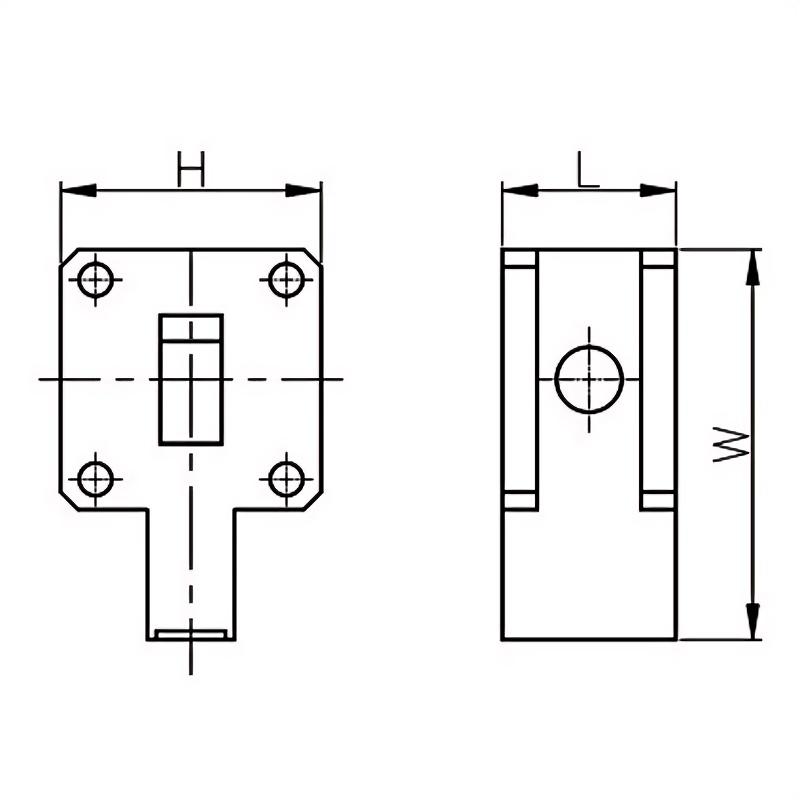

RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Isolator for global customers. BG3838-WR140 is a Waveguide Isolator in Frequency Range of 15.0~18.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.40 dB and Isolation Min is 20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BG3838-WR140
  • Description
    15.0 to 18.0 GHz Waveguide Isolator

General Parameters

  • Frequency Range
    15.0~18.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.40 dB
  • Isolation Min
    20.0 dB
  • Forward Power
    /
  • Reverse Power
    /
  • VSWR Max
    1.20
  • Impedance
    50 Ω
  • Connector Type
    WR140
  • Size
    38*38*33 mm
  • Weight
    /
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Bandwidth Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Choose
BG3838-WR140/15.0-18.0GHz 15.0-18.0 100% 0.40 20.0 1.25
Request Quote
