BG2660-WR28

by Waveguide-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Isolator for global customers. BG2660-WR28 is a Waveguide Isolator in Frequency Range of 26.0~40.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.40~0.45 dB and Isolation Min is 16.0~20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BG2660-WR28
  • Description
    26.0 to 40.0 GHz Waveguide Isolator

General Parameters

  • Frequency Range
    26.0~40.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.40~0.45 dB
  • Isolation Min
    16.0~20.0 dB
  • Forward Power
    /
  • Reverse Power
    /
  • VSWR Max
    1.25~1.40
  • Impedance
    50 Ω
  • Connector Type
    WR28

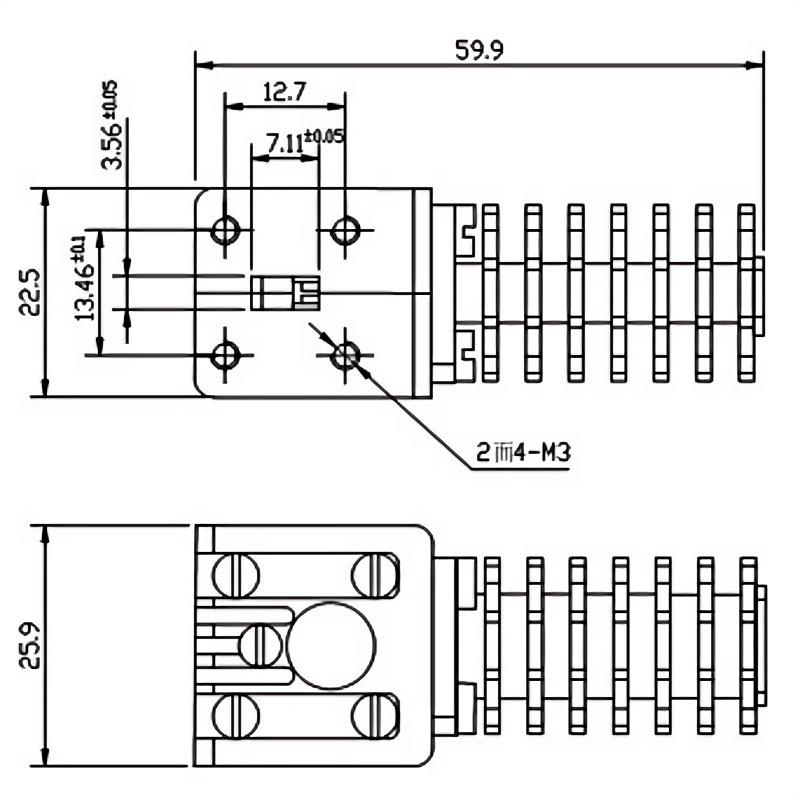

  • Size
    59.9*25.9*22.5 mm
  • Weight
    /
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Bandwidth Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Choose
BG2660-WR28/26.5-40.0GHz 26.5-40.0 100% 0.40/0.45 16.0/20.0 1.25/1.40
