WH3234A

by Drop-in-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH3234A is a Drop in Circulator in Frequency Range of 2.0~4.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.40~0.50 dB and Isolation Min is 18.0~20.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 150 W.

Product Specifications

Product Details

  • Part Number
    WH3234A
  • Description
    2.0 to 4.0 GHz Drop in Circulator

General Parameters

  • Frequency Range
    2.0~4.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.40~0.50 dB
  • Isolation Min
    18.0~20.0 dB
  • Power
    150 W
  • VSWR Max
    1.25~1.30
  • Impedance
    50 Ω
  • Connector Type
    /
  • Size

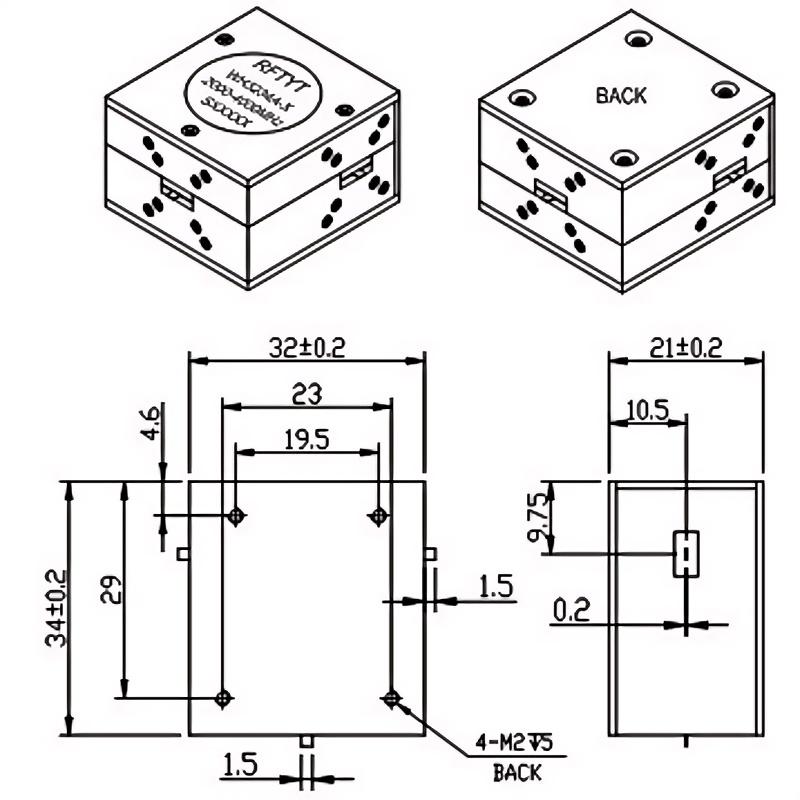

    32.0*34.0*21.0 mm
  • Weight
    100 g
  • Operating Temperature
    -10~+60 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH3234A-X/2000-3000MHz 2.0-3.0 0.40 18.0 1.30 150
WH3234A-X/2000-3500MHz 2.0-3.5 0.40 18.0 1.30 150
WH3234A-X/2000-4000MHz 2.0-4.0 0.50 18.0 1.30 150
WH3234A-X/2500-3500MHz 2.5-3.5 0.40 20.0 1.25 150
WH3234A-X/2500-4000MHz 2.5-4.0 0.40 18.0 1.30 150
