SMTH-D12.3A

by Surface-Mount-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Surface Mount Circulator for global customers. SMTH-D12.3A is a Surface Mount Circulator in Frequency Range of 1400~6000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.35~0.50 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 30 W.

Product Specifications

Product Details

  • Part Number
    SMTH-D12.3A
  • Description
    1400 to 6000 MHz Surface Mount Circulator

General Parameters

  • Frequency Range
    1400~6000 MHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.35~0.50 dB
  • Isolation Min
    18.0~23.0 dB
  • Power
    30 W
  • VSWR Max
    1.20~1.30
  • Impedance
    50 Ω
  • Connector Type
    SMT

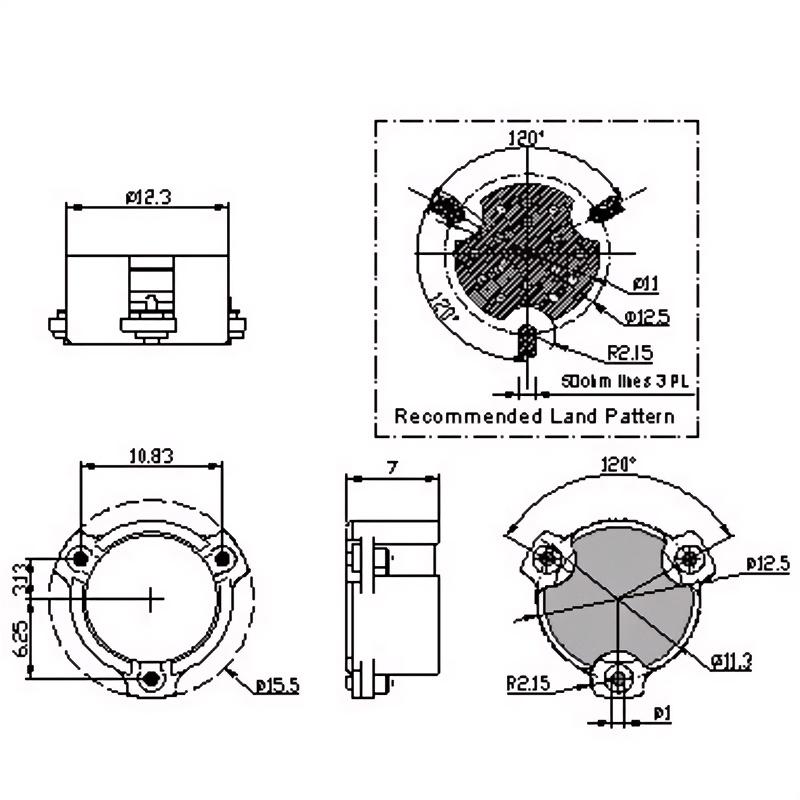

  • Size
    Φ12.3*7.0 mm
  • Weight
    5 g
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Power （CW） Choose
SMTH-D12.3A-X/1410-1470MHz 1410-1470 0.40 18.0 1.30 30
SMTH-D12.3A-X/1428-1448MHz 1428-1448 0.35 18.0 1.30 30
SMTH-D12.3A-X/1610-1620MHz 1610-1620 0.30 23.0 1.20 30
SMTH-D12.3A-X/1980-2010MHz 1980-2010 0.30 23.0 1.20 30
SMTH-D12.3A-X/2018-2122MHz 2018-2122 0.35 20.0 1.25 30
SMTH-D12.3A-X/2200-2300MHz 2200-2300 0.35 20.0 1.25 30
SMTH-D12.3A-X/2470-2520MHz 2470-2520 0.35 20.0 1.25 30
SMTH-D12.3A-X/2900-3300MHz 2900-3300 0.35 18.0 1.30 30
SMTH-D12.3A-X/3300-3600MHz 3300-3600 0.30 20.0 1.25 30
SMTH-D12.3A-X/5000-6000MHz 5000-6000 0.50 18.0 1.30 30
SMTH-D12.3A-X/5500-6000MHz 5500-6000 0.40 20.0 1.25 30
