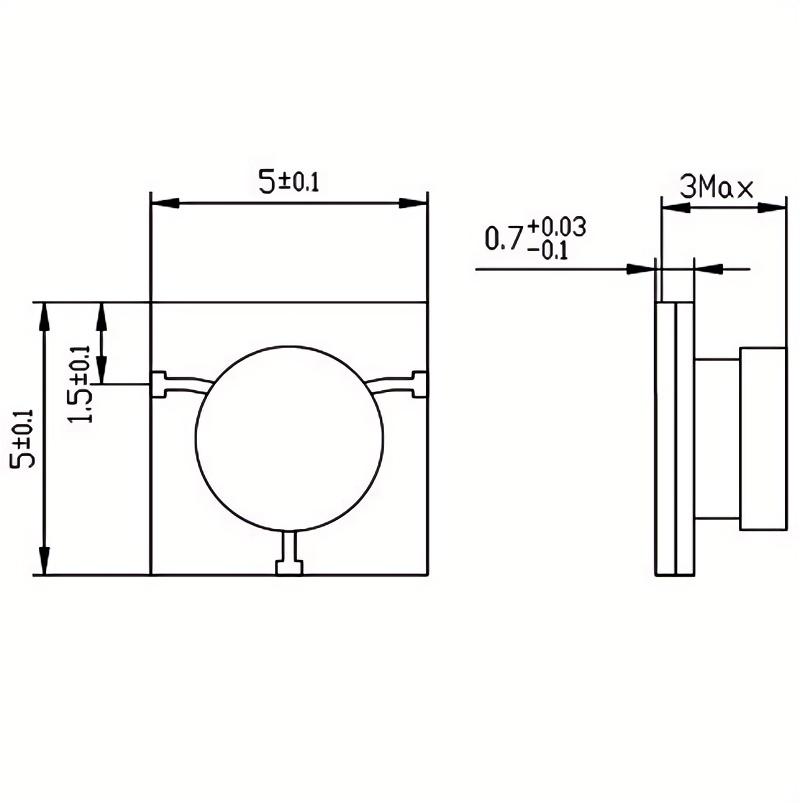

RF Solution offer a wide selection of Microstrip Circulator for global customers. MH0505-07 is a Microstrip Circulator in Frequency Range of 11.0~18.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.50 dB and Isolation Min is 20.0 dB. The component has a good working performance and stability, it is ideal for handling a Peak Power W@ Duty Cycle 25% of 20 W.
| Part Number | Frequency Range (GHz) | Insertion Loss Max (dB) | Insertion Loss Max (dB) | VSWR Max | Peak power W@ duty cycle 25% | Choose |
|---|---|---|---|---|---|---|
| MH0505-07-X/11.0-13.0GHz | 11.0-13.0 | 0.50 | 20.0 | 1.25 | 20 | |
| MH0505-07-X/12.0-14.0GHz | 12.0-14.0 | 0.50 | 20.0 | 1.25 | 20 | |
| MH0505-07-X/13.0-15.0GHz | 13.0-15.0 | 0.50 | 20.0 | 1.25 | 20 | |
| MH0505-07-X/14.0-16.0GHz | 14.0-16.0 | 0.50 | 20.0 | 1.25 | 20 | |
| MH0505-07-X/15.0-17.0GHz | 15.0-17.0 | 0.50 | 20.0 | 1.25 | 20 | |
| MH0505-07-X/14.0-18.0GHz | 14.0-18.0 | 0.50 | 20.0 | 1.30 | 20 |
