MH0505-07-15-17

by Microstrip-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Circulator for global customers. MH0505-07-15-17 is a Microstrip Circulator in Frequency Range of 15.0~17.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.40 dB and Isolation Min is 20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 10 W.

Product Specifications

Product Details

  • Part Number
    MH0505-07-15-17
  • Description
    15.0 to 17.0 GHz Microstrip Circulator

General Parameters

  • Frequency Range
    15.0~17.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.40 dB
  • Isolation Min
    20.0 dB
  • Forward Power
    10 W
  • VSWR Max
    1.25
  • Impedance
    50 Ω
  • Connector Type
    Micro strip

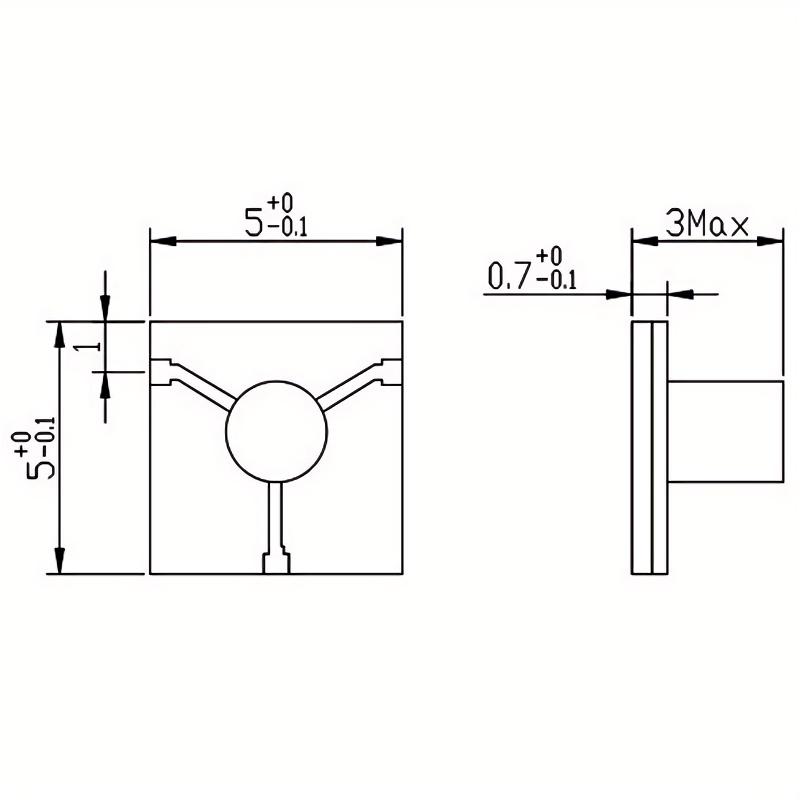

  • Size
    5.0*5.0*3.0 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
