BH5055-WR90

by Waveguide-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Circulator for global customers. BH5055-WR90 is a Waveguide Circulator in Frequency Range of 9.0~9.55 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.35 dB and Isolation Min is 20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BH5055-WR90
  • Description
    9.2 to 9.55 GHz Waveguide Circulator

General Parameters

  • Frequency Range
    9.0~9.55 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.35 dB
  • Isolation Min
    20.0 dB
  • Forward Power
    /
  • VSWR Max
    1.25
  • Impedance
    50 Ω
  • Connector Type
    WR90

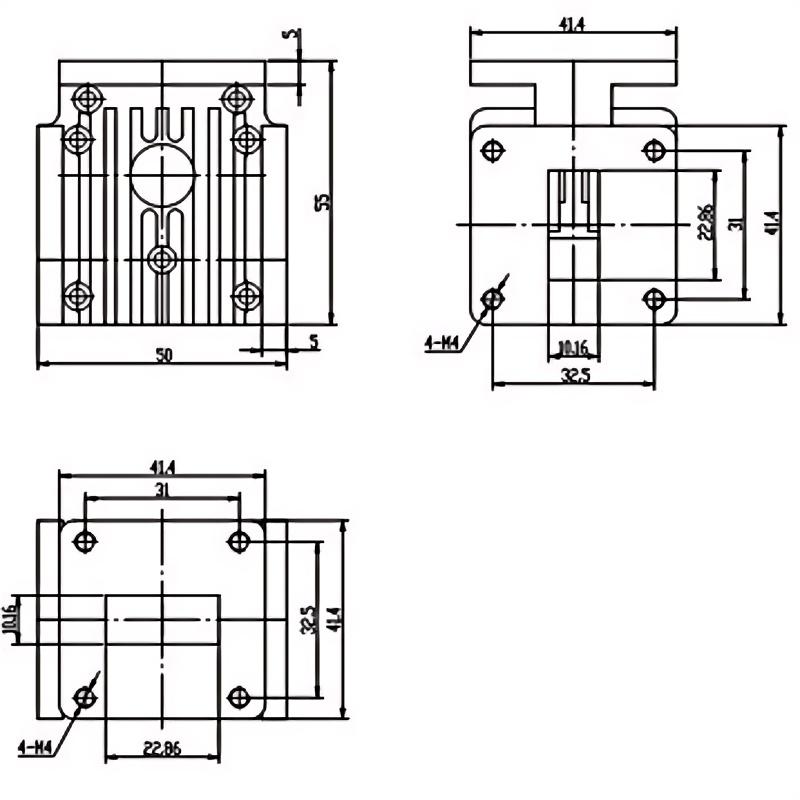

  • Size
    55*50*41.4 mm
  • Weight
    /
  • Operating Temperature
    -30~+75 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
