RFT50-200WT1010

by Chip-Termination
RFHB04G18GPI Image

RF Solution offer a wide selection of Chip Termination for global customers. RFT50-200WT1010 is a Chip Termination in Frequency Range of DC~4.0 GHz. It is made of high quality materials under a high standard, the Resistance Range of this product is 50 Ω, Resistance Tolerance is ±5% and VSWR Max is 1.25. The component has a good working performance and stability, it is ideal for handling a Power of 200 W.

Product Specifications

Product Details

  • Part Number
    RFT50-200WT1010
  • Description
    DC~4.0 GHz Chip Termination

General Parameters

  • Frequency Range
    DC~4.0 GHz
  • Resistance Range
    50 Ω
  • Resistance Tolerance
    ±5%
  • VSWR Max
    1.25
  • Power
    200 W

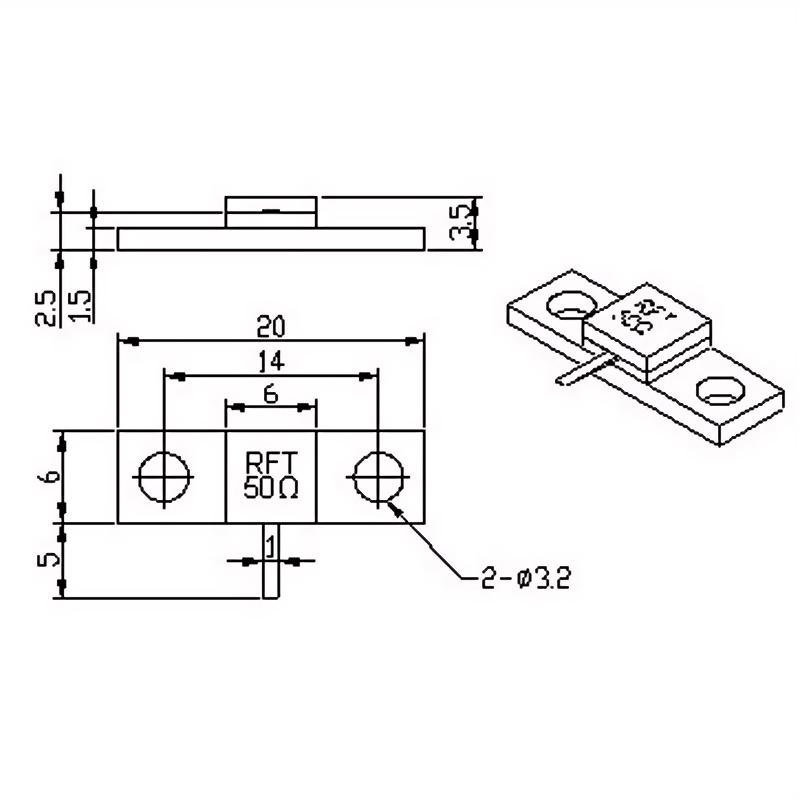

  • Size
    Refer to the design drawing
  • Weight
    /
  • Temperature Coefficient Max
    150 ppm/℃
  • Substrate Material
    BeO
  • Cap Material
    Medium
  • Resistance Technology
    Thick Film
  • Operating Temperature
    -55~+155 °C
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
