RFTXX-300RM2710

by Flanged-Resistor
RFHB04G18GPI Image

RF Solution offer a wide selection of Flanged Resistor for global customers. RFTXX-300RM2710 is a Flanged Resistor in Capacitance of 5.0 PF@100Ω. It is made of high quality materials under a high standard, the Resistance of this product is XX Ω (10~1000Ω Customizable), Resistance Tolerance is ±5% and Temperature Coefficient Max is 150 ppm/℃. The component has a good working performance and stability, it is ideal for handling a Power of 300 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-300RM2710
  • Description
    Capacitance 5.0 PF@100Ω Flanged Resistor

General Parameters

  • Capacitance
    5.0 PF@100Ω
  • Resistance
    XX Ω (10~1000Ω Customizable)
  • Resistance Tolerance
    ±5%
  • Temperature Coefficient Max
    150 ppm/℃
  • Power
    300 W
  • Size

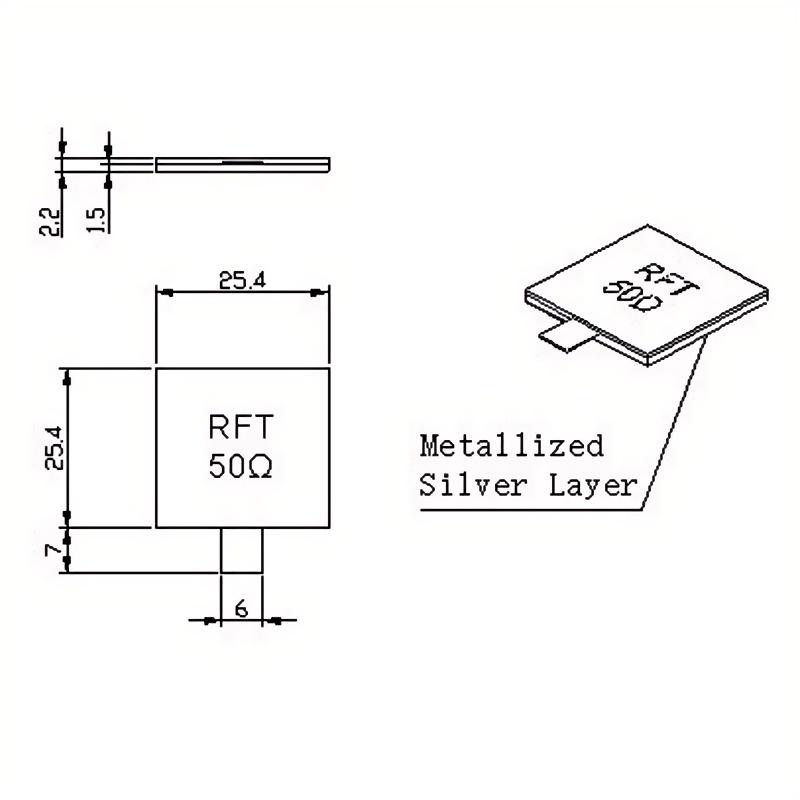

    Refer to the design drawing
  • Weight
    /
  • Substrate Material
    BeO
  • Cover
    AL2O3
  • Mounting Flange
    Brass
  • Lead
    Copper silver plating
  • Resistive Element
    Thick Film
  • Operating Temperature
    -55~+150 °C
  • ROHS Compliant
    Yes
