BSF-27.5G28.35A-S

by Band-Stop-Filter
RFHB04G18GPI Image

RF Solution offer a wide selection of Band Stop Filter for global customers. BSF-27.5G28.35A-S is a Band Stop Filter in Rejection Band of 27.5~28.35 GHz. It is made of high quality materials under a high standard, the Pass Band of this product is DC~26.3GHz / 29.55~50GHz, Insertion Loss Max is 3.0 dB and Rejection Min is 60 dB. The component has a good working performance and stability, it is ideal for handling a Rated Power of 1 W.

Product Specifications

Product Details

  • Part Number
    BSF-27.5G28.35A-S
  • Description
    27.5~28.35 GHz Band Stop Filter

General Parameters

  • Rejection Band
    27.5~28.35 GHz
  • Pass Band
    DC~26.3GHz / 29.55~50GHz
  • Insertion Loss Max
    3.0 dB
  • Rejection Min
    60 dB
  • Rated Power
    1 W
  • VSWR Max
    2.00
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

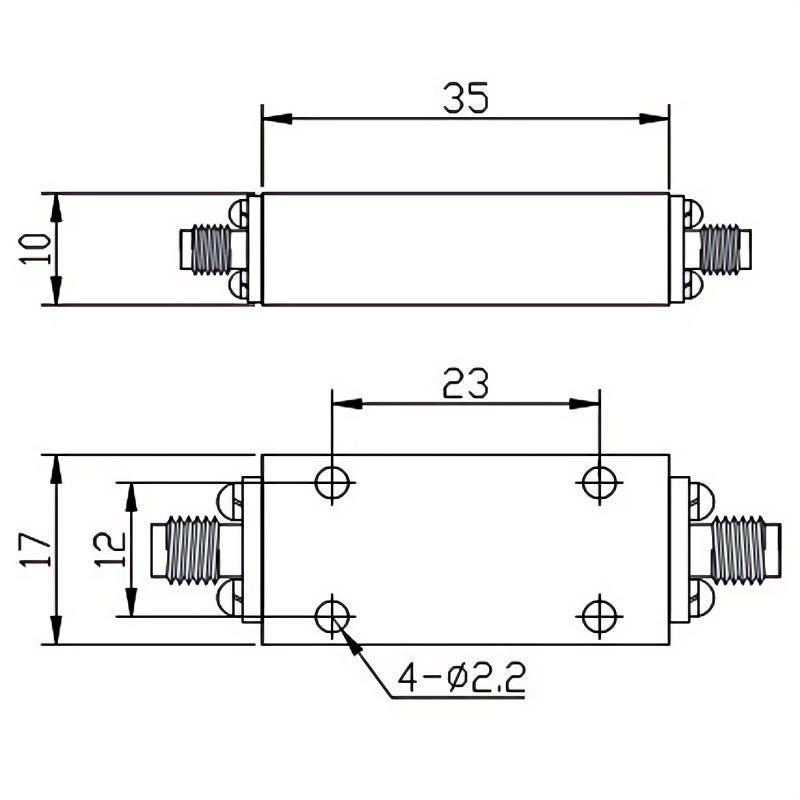

  • Size
    35*17*10 mm
  • Surface Finishing
    Black Painting
  • Operating Temperature
    Ordinary temperature
  • Storage Temperature
    -55~+85 °C
  • ROHS Compliant
    Yes
