UIYCI3538A

by Coaxial-Isolator

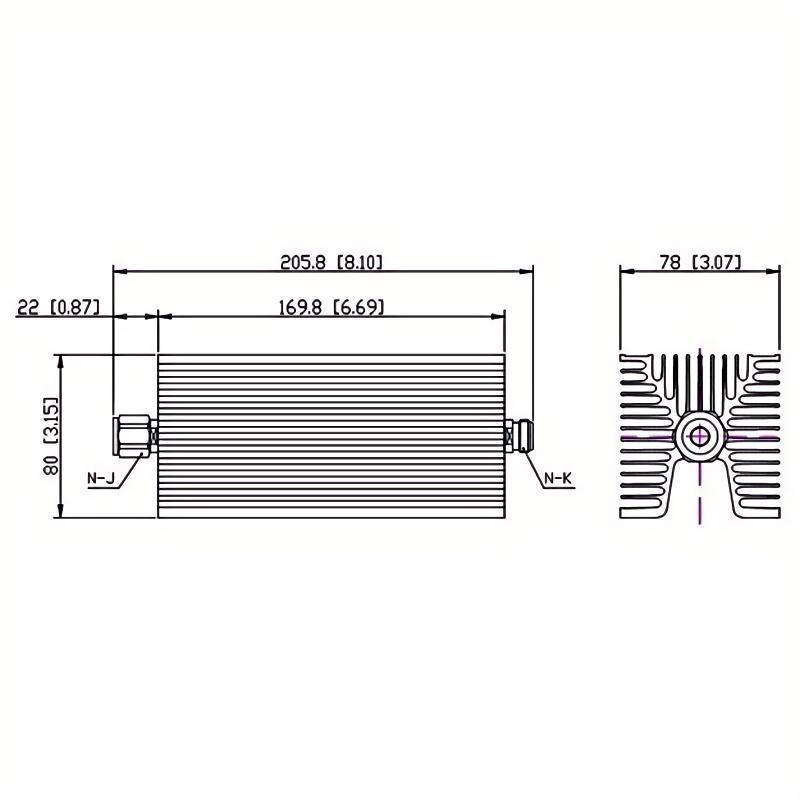

RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Isolator for global customers. UIYCI3538A is a Coaxial Isolator in Frequency Range of 200~1875 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 40%, Insertion Loss Max is 0.20~0.65 dB and Isolation Min is 15.0~30.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100/300 W.

Product Specifications

Product Details

  • Part Number
    UIYCI3538A
  • Description
    130 to 1875 MHz Coaxial Isolator

General Parameters

  • Frequency Range
    200~1875 MHz
  • Bandwidth Max
    40%
  • Insertion Loss Max
    0.20~0.65 dB
  • Isolation Min
    15.0~30.0 dB
  • Forward Power
    100/300 W
  • Reverse Power
    30 W
  • VSWR Max
    1.15~1.45
  • Impedance
    50 Ω
  • Connector Type
    N-F/SMA-F
  • Size
    35*38*15 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
UIYCI3538A220T240NF 220-240 0.65 18.0 1.30 300 30
UIYCI3538A240T260NF 240-260 0.50 18.0 1.30 300 30
UIYCI3538A260T280NF 260-280 0.50 20.0 1.25 300 30
UIYCI3538A309T339NF 309-339 0.40 20.0 1.25 300 30
UIYCI3538A350T370NF 350-370 0.35 21.0 1.20 300 30
UIYCI3538A380T460SF 380-460 0.50 18.0 1.30 100 30
UIYCI3538A390T410SF 390-410 0.30 23.0 1.20 100 30
UIYCI3538A400T470SF 400-470 0.40 20.0 1.25 100 30
UIYCI3538A413T419SF 413-419 0.30 35.0 1.15 300 30
UIYCI3538A413T419NFTNM 413-419 0.30 35.0 1.15 300 30
UIYCI3538A419T425NFTNM 419-425 0.30 35.0 1.15 300 30
UIYCI3538A450T520NF 450-520 0.40 20.0 1.25 100 30
UIYCI3538A600T800SF 600-800 0.50 19.0 1.25 100 30
UIYCI3538A700T900SF 700-900 0.40 20.0 1.25 100 30
UIYCI3538A700T1000SF 700-1000 0.60 16.0 1.40 100 30
UIYCI3538A770T860SF 770-860 0.30 23.0 1.20 100 30
UIYCI3538A860T872SF 860-872 0.25 30.0 1.15 100 30
UIYCI3538A900T930SF 900-930 0.20 30.0 1.15 100 30
UIYCI3538A1000T1300NF 1000-1300 0.40 20.0 1.25 100 30
UIYCI3538A1100T1700NF 1100-1700 0.50 15.0 1.45 100 30
UIYCI3538A1296T1298NF 1296-1298 0.20 30.0 1.15 100 30
