UIYCI1522A

by Coaxial-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Isolator for global customers. UIYCI1522A is a Coaxial Isolator in Frequency Range of 4.4~7.2 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 25%, Insertion Loss Max is 0.30~0.50 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 60 W.

Product Specifications

Product Details

  • Part Number
    UIYCI1522A
  • Description
    4.4 to 7.2 GHz Coaxial Isolator

General Parameters

  • Frequency Range
    4.4~7.2 GHz
  • Bandwidth Max
    25%
  • Insertion Loss Max
    0.30~0.50 dB
  • Isolation Min
    18.0~23.0 dB
  • Forward Power
    60 W
  • Reverse Power
    5 W
  • VSWR Max
    1.20~1.35
  • Impedance
    50 Ω
  • Connector Type
    N-F/SMA-F

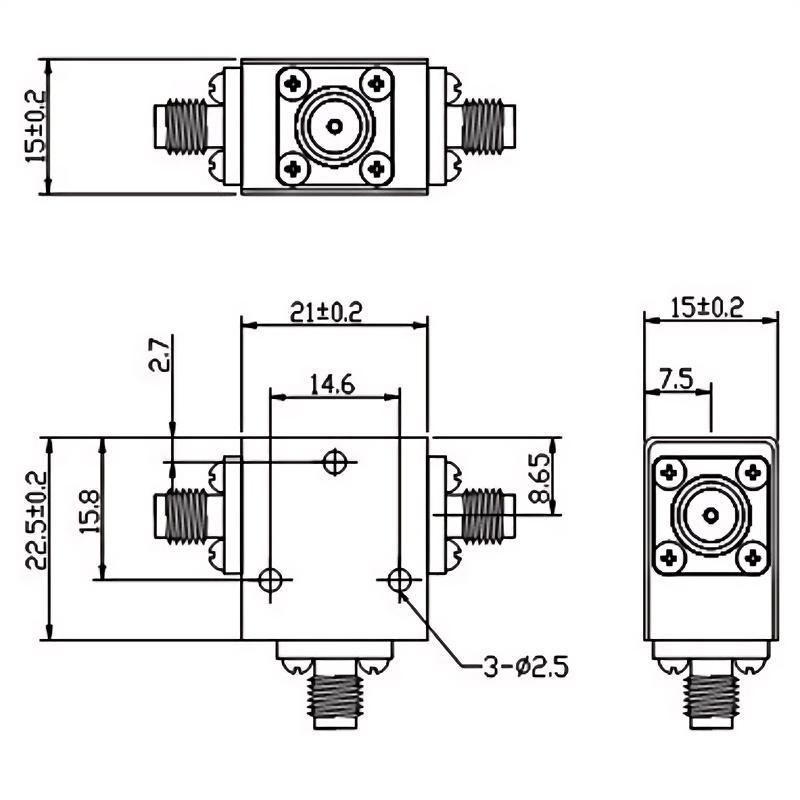

  • Size
    15*22.5*13.8 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
UIYCI1522A44T5SF 4.4-5.0 0.40 18.0 1.30 60 5
UIYCI1522A45T55NF 4.5-5.5 0.50 18.0 1.30 60 5
UIYCI1522A47T52SF 4.7-5.2 0.35 23.0 1.20 60 5
UIYCI1522A5T55SF 5.0-55 0.30 23.0 1.20 60 5
UIYCI1522A5T6SF 5.0-6.0 0.40 20.0 1.25 60 5
UIYCI1522A5T6NF 5.0-6.0 0.50 18.0 1.30 60 5
UIYCI1522A5T7SF 5.0-7.0 0.50 18.0 1.30 60 5
UIYCI1522A51T585SF 5.1-5.85 0.35 23.0 1.20 60 5
UIYCI1522A55T6SF 5.5-6.0 0.30 23.0 1.20 60 5
UIYCI1522A565T715SF 5.65-7.15 0.50 18.0 1.35 60 5
UIYCI1522A57T59SF 5.7-5.9 0.30 23.0 1.20 60 5
UIYCI1522A58T72SF 5.8-7.2 0.30 23.0 1.20 60 5
