UIYBCI1326A

by Coaxial-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Isolator for global customers. UIYBCI1326A is a Coaxial Isolator in Frequency Range of 26.5~40.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 1.50~1.70 dB and Isolation Min is 12.0~14.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 10 W.

Product Specifications

Product Details

  • Part Number
    UIYBCI1326A
  • Description
    22.0 to 33.0 GHz Coaxial Isolator

General Parameters

  • Frequency Range
    26.5~40.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    1.50~1.70 dB
  • Isolation Min
    12.0~14.0 dB
  • Forward Power
    10 W
  • Reverse Power
    2 W
  • VSWR Max
    1.60~1.80
  • Impedance
    50 Ω
  • Connector Type
    2.92-F

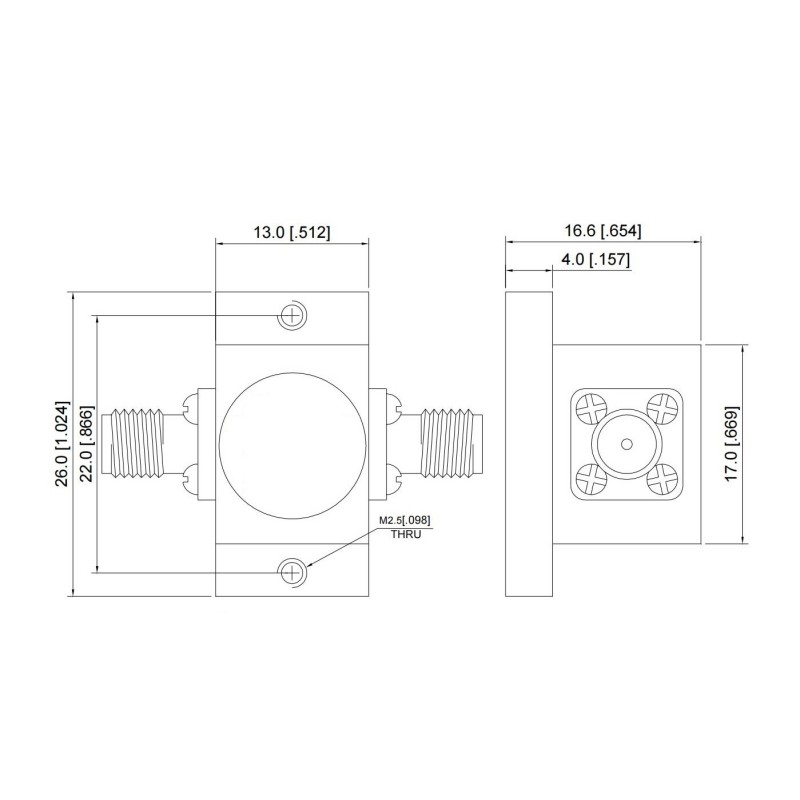

  • Size
    13*26*16.6 mm
  • Weight
    /
  • Operating Temperature
    -45~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
UIYBCI1326A265T40KF 26.5-40.0 1.50/1.70 14.0/12.0 1.60/1.80 10 2
UIYBCI1326A265T40KMTKF 26.5-40.0 1.50/1.70 14.0/12.0 1.60/1.80 10 2
