UIYCI4337A

by Coaxial-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Isolator for global customers. UIYCI4337A is a Coaxial Isolator in Frequency Range of 40.0~50.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 12%, Insertion Loss Max is 0.80~1.60 dB and Isolation Min is 12.0~15.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 10 W.

Product Specifications

Product Details

  • Part Number
    UIYCI4337A
  • Description
    40.0 to 50.0 GHz Coaxial Isolator

General Parameters

  • Frequency Range
    40.0~50.0 GHz
  • Bandwidth Max
    12%
  • Insertion Loss Max
    0.80~1.60 dB
  • Isolation Min
    12.0~15.0 dB
  • Forward Power
    10 W
  • Reverse Power
    1 W
  • VSWR Max
    1.50~1.80
  • Impedance
    50 Ω
  • Connector Type
    2.4-F/2.4-M

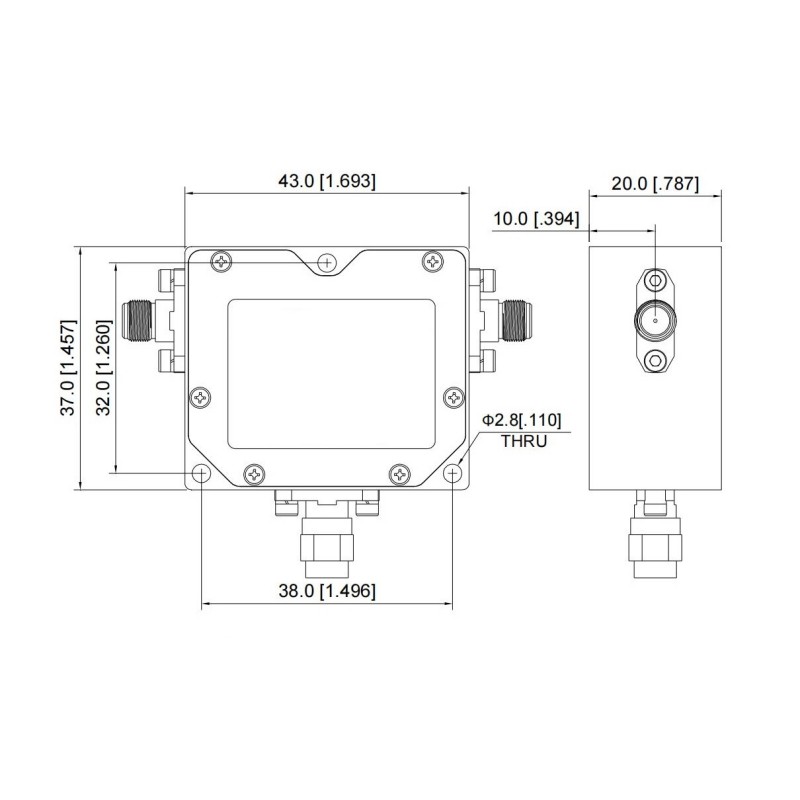

  • Size
    43*37*20 mm
  • Weight
    /
  • Operating Temperature
    -45~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
UIYCI4337A40T4524F 40.0-45.0 Typ 1.3 Max 1.6 Typ 15 Min 14 Typ 1.5 Max 1.6 10 1
UIYCI4337A40T4524MT24F 40.0-45.0 Typ 1.3 Max 1.6 Typ 15 Min 14 Typ 1.5 Max 1.6 10 1
UIYCI4337A45T5024F 45.0-50.0 Typ 0.8 Max 1.3 Typ 15 Min 12 Typ 1.5 Max 1.8 10 1
UIYCI4337A45T5024MT24F 45.0-50.0 Typ 0.8 Max 1.3 Typ 15 Min 12 Typ 1.5 Max 1.8 10 1
