UIYDI815A

by Drop-in-Isolator

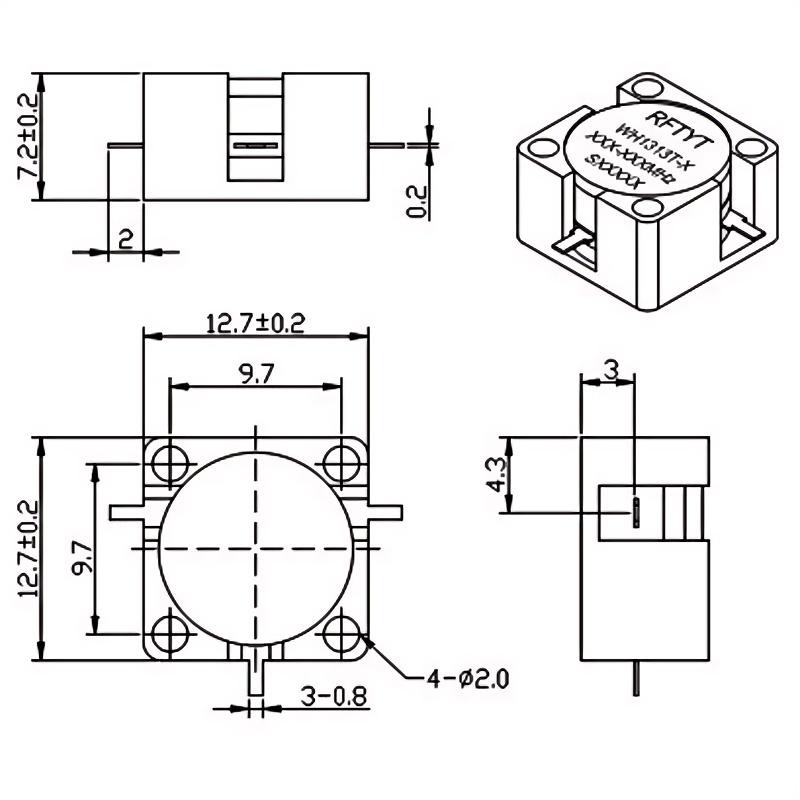

RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Isolator for global customers. UIYDI815A is a Drop in Isolator in Frequency Range of 5.0~30.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 40%, Insertion Loss Max is 0.30~0.60 dB and Isolation Min is 16.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 30 W.

Product Specifications

Product Details

  • Part Number
    UIYDI815A
  • Description
    5.0 to 25.0 GHz Drop in Isolator

General Parameters

  • Frequency Range
    5.0~30.0 GHz
  • Bandwidth Max
    40%
  • Insertion Loss Max
    0.30~0.60 dB
  • Isolation Min
    16.0~23.0 dB
  • Forward Power
    30 W
  • Reverse Power
    5 W
  • VSWR Max
    1.20~1.45
  • Impedance
    50 Ω
  • Connector Type
    TAB
  • Size
    8.9×15×7.8 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
