SMTG-D18

by Surface-Mount-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Surface Mount Isolator for global customers. SMTG-D18 is a Surface Mount Isolator in Frequency Range of 900~2600 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 5%, Insertion Loss Max is 0.25~0.50 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    SMTG-D18
  • Description
    900 to 2600 MHz Surface Mount Isolator

General Parameters

  • Frequency Range
    900~2600 MHz
  • Bandwidth Max
    5%
  • Insertion Loss Max
    0.25~0.50 dB
  • Isolation Min
    18.0~23.0 dB
  • Forward Power
    100 W
  • Reverse Power
    10 W
  • VSWR Max
    1.20~1.30
  • Impedance
    50 Ω
  • Connector Type
    SMT

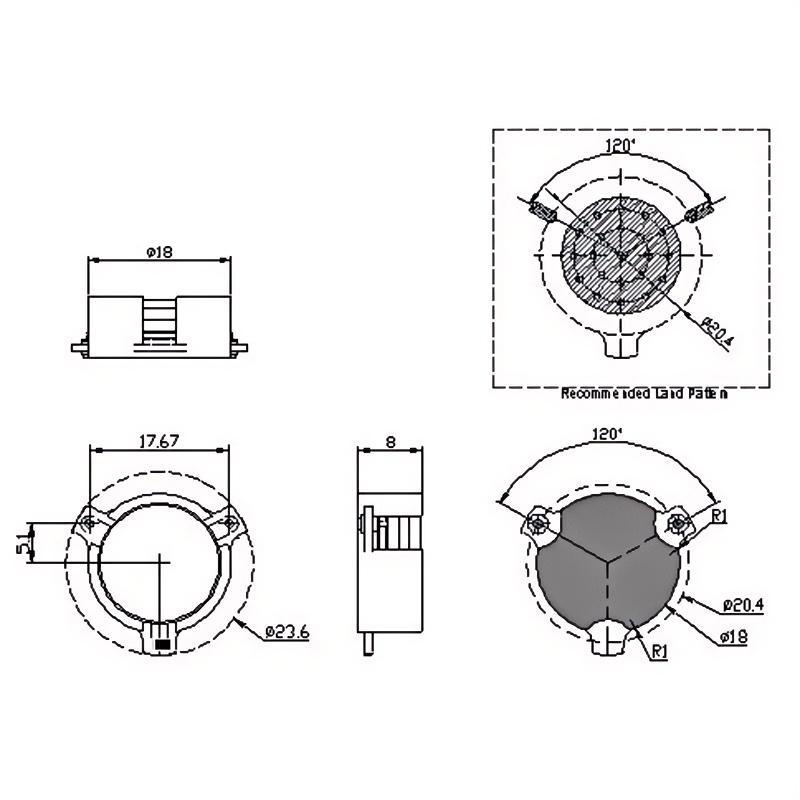

  • Size
    Φ18.0*8.0 mm
  • Weight
    15 g
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
SMTG-D18-X/1400-1500MHz 1400-1500 0.35 23.0 1.20 100 10
SMTG-D18-X/1400-1530MHz 1400-1530 0.35 20.0 1.25 100 10
SMTG-D18-X/2100-2200MHz 2100-2200 0.25 23.0 1.20 100 10
SMTG-D18-X/2110-2170MHz 2110-2170 0.30 23.0 1.20 100 10
SMTG-D18-X/2555-2655MHz 2555-2655 0.25 23.0 1.20 100 10
SMTG-D18-X/2570-2620MHz 2570-2620 0.50 18.0 1.30 100 10
