WH3030B

by Drop-in-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH3030B is a Drop in Circulator in Frequency Range of 2.0~6.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.85~1.70 dB and Isolation Min is 12.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 50 W.

Product Specifications

Product Details

  • Part Number
    WH3030B
  • Description
    2.0 to 6.0 GHz Drop in Circulator

General Parameters

  • Frequency Range
    2.0~6.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.85~1.70 dB
  • Isolation Min
    12.0 dB
  • Power
    50 W
  • VSWR Max
    1.50~1.60
  • Impedance
    50 Ω
  • Connector Type
    /
  • Size

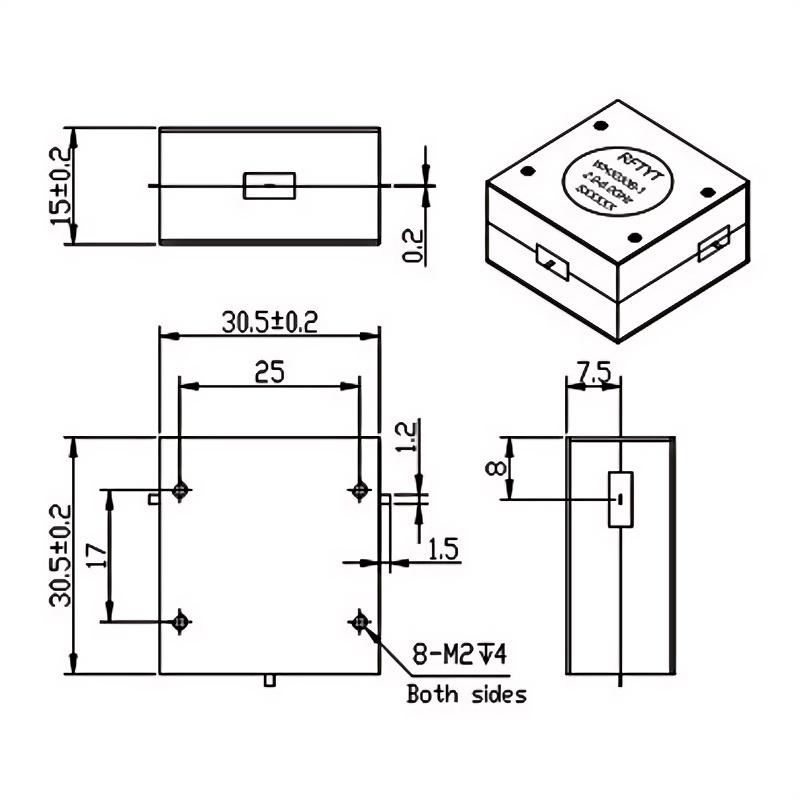

    30.5*30.5*15.0 mm
  • Weight
    110 g
  • Operating Temperature
    -10~+60 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH3030B-X/2.0-6.0GHz 2.0-6.0 0.85 12.0 1.50 50
WH3030B-X/2.0-6.0GHz 2.0-6.0 1.70 12.0 1.60 50
