SMTH-D12.3B

by Surface-Mount-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Surface Mount Circulator for global customers. SMTH-D12.3B is a Surface Mount Circulator in Frequency Range of 1400~6000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.30~0.60 dB and Isolation Min is 17.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 30 W.

Product Specifications

Product Details

  • Part Number
    SMTH-D12.3B
  • Description
    1400 to 6000 MHz Surface Mount Circulator

General Parameters

  • Frequency Range
    1400~6000 MHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.30~0.60 dB
  • Isolation Min
    17.0~23.0 dB
  • Power
    30 W
  • VSWR Max
    1.20~1.30
  • Impedance
    50 Ω
  • Connector Type
    SMT

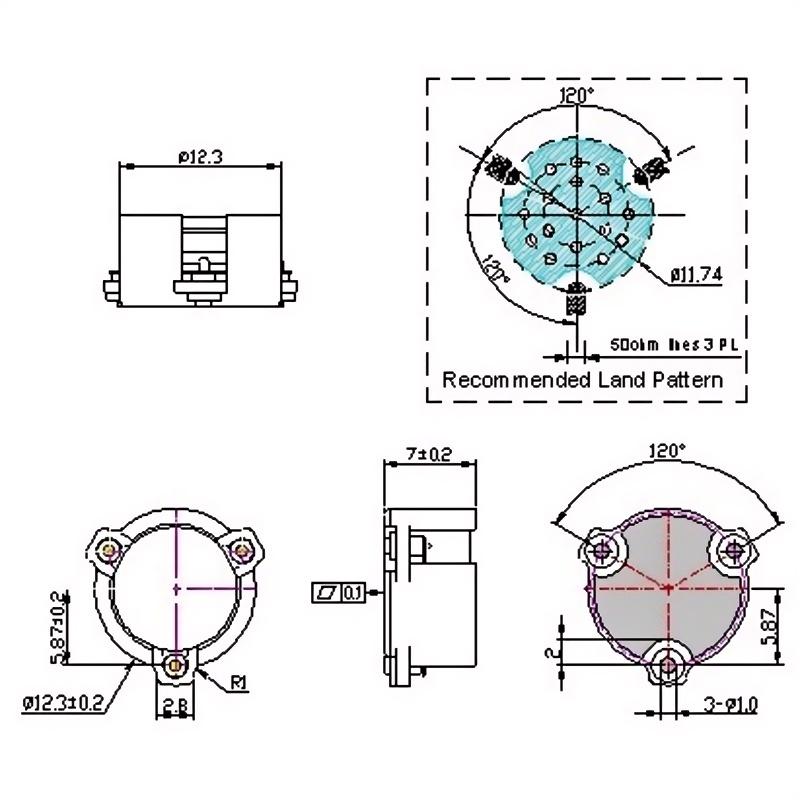

  • Size
    Φ12.3*7.0 mm
  • Weight
    5 g
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Power （CW） Choose
SMTH-D12.3B-X/1420-1450MHz 1420-1450 0.40 20.0 1.25 30
SMTH-D12.3B-X/1710-1785MHz 1710-1785 0.40 20.0 1.25 30
SMTH-D12.3B-X/1805-1880MHz 1805-1880 0.40 20.0 1.25 30
SMTH-D12.3B-X/2110-2170MHz 2110-2170 0.30 23.0 1.20 30
SMTH-D12.3B-X/2496-2696MHz 2496-2696 0.30 23.0 1.20 30
SMTH-D12.3B-X/3250-3450MHz 3250-3450 0.35 20.0 1.25 30
SMTH-D12.3B-X/3300-3500MHz 3300-3500 0.35 20.0 1.25 30
SMTH-D12.3B-X/3400-3800MHz 3400-3800 0.60 18.0 1.30 30
SMTH-D12.3B-X/3400-4000MHz 3400-4000 0.60 17.0 1.30 30
SMTH-D12.3B-X/4400-5000MHz 4400-5000 0.60 18.0 1.30 30
SMTH-D12.3B-X/5700-5900MHz 5700-5900 0.40 20.0 1.25 30
