MH0404-00

by Microstrip-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Circulator for global customers. MH0404-00 is a Microstrip Circulator in Frequency Range of 25.0~27.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 1.10 dB and Isolation Min is 18.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 20W.

Product Specifications

Product Details

  • Part Number
    MH0404-00
  • Description
    25.0 to 27.0 GHz Microstrip Circulator

General Parameters

  • Frequency Range
    25.0~27.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    1.10 dB
  • Isolation Min
    18.0 dB
  • Forward Power
    20W
  • VSWR Max
    1.30
  • Impedance
    50 Ω
  • Connector Type
    Micro strip

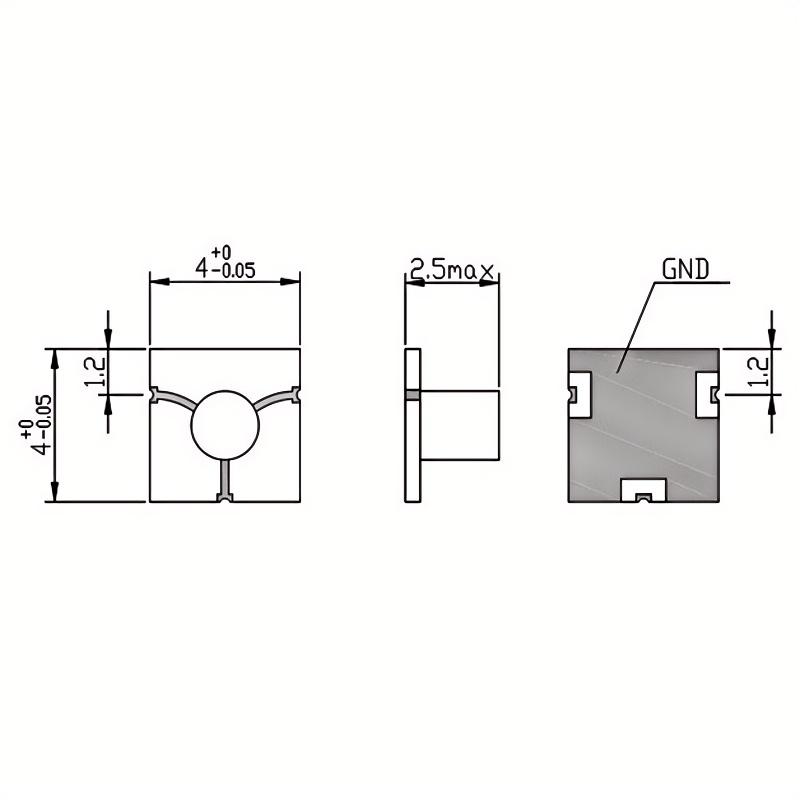

  • Size
    4.0*4.0*2.5 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
