BH6880-WR137

by Waveguide-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Circulator for global customers. BH6880-WR137 is a Waveguide Circulator in Frequency Range of 5.4~8.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.25 dB and Isolation Min is 25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BH6880-WR137
  • Description
    5.4 to 8.0 GHz Waveguide Circulator

General Parameters

  • Frequency Range
    5.4~8.0 GHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.25 dB
  • Isolation Min
    25.0 dB
  • Forward Power
    /
  • VSWR Max
    1.12
  • Impedance
    50 Ω
  • Connector Type
    WR137

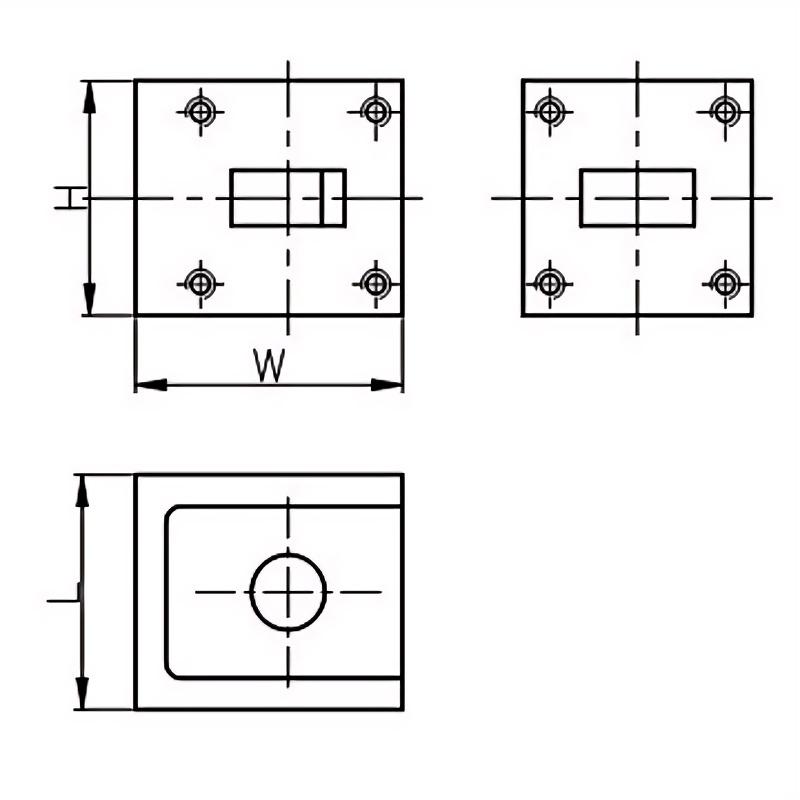

  • Size
    80*68.3*49.2 mm
  • Weight
    /
  • Operating Temperature
    -40~+70 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
