THH14566KN

by Dual-Junction-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Dual Junction Circulator for global customers. THH14566KN is a Dual Junction Circulator in Frequency Range of 1.0-2.0GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is Full, Insertion Loss Max is 1.4 dB and Isolation Min is 32.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    THH14566KN
  • Description
    1.0 to 2.0GHz Dual Junction Coaxial Circulator

General Parameters

  • Frequency Range
    1.0-2.0GHz
  • Bandwidth Max
    Full
  • Insertion Loss Max
    1.4 dB
  • Isolation Min
    32.0 dB
  • Forward Power
    100 W
  • VSWR Max
    1.40
  • Impedance
    50 Ω
  • Connector Type
    n-F

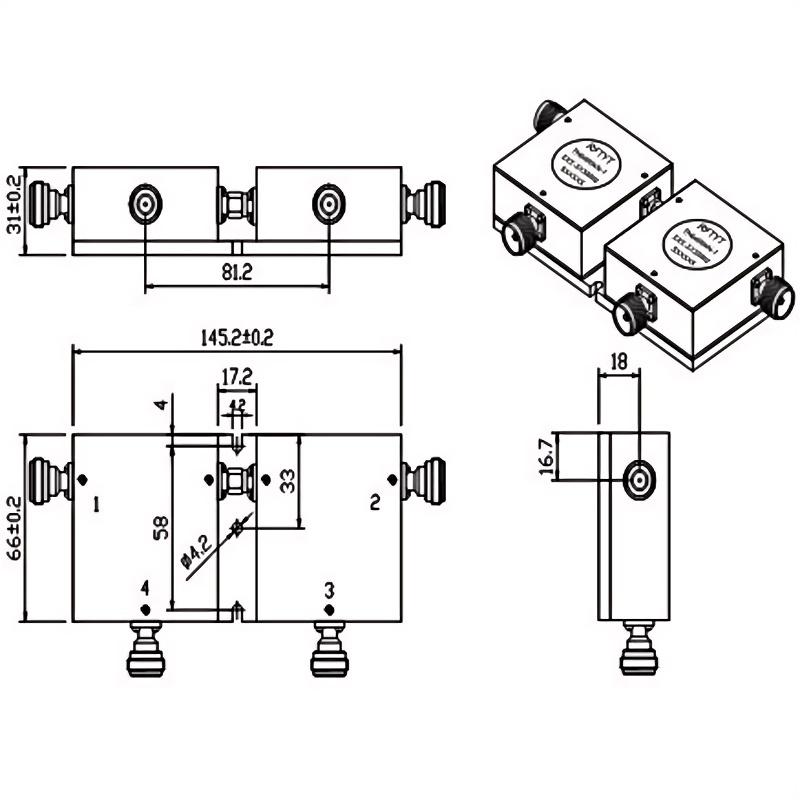

  • Size
    145.2*66.0*31.0 mm
  • Operating Temperature
    -10~+60℃
  • Storage Temperature
    -30~+70 ℃
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Forward Power (W) Choose
THH14566KN-X/1.0-2.0GHz 1.0-2.0 1.40 32.0 1.40 100
