WH5050A

by Drop-in-Circulator

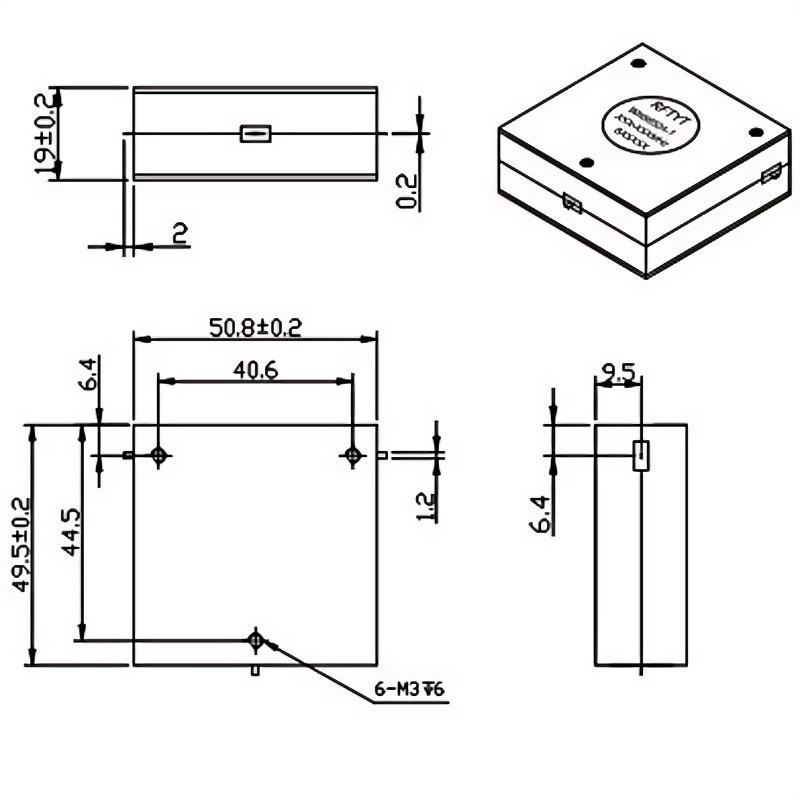

RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH5050A is a Drop in Circulator in Frequency Range of 1.25~3.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.50~0.80 dB and Isolation Min is 16.0~17.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 150 W.

Product Specifications

Product Details

  • Part Number
    WH5050A
  • Description
    1.25 to 3.0 GHz Drop in Circulator

General Parameters

  • Frequency Range
    1.25~3.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.50~0.80 dB
  • Isolation Min
    16.0~17.0 dB
  • Power
    150 W
  • VSWR Max
    1.30~1.50
  • Impedance
    50 Ω
  • Connector Type
    /
  • Size
    49.5*50.8*19.0 mm
  • Weight
    190 g
  • Operating Temperature
    -10~+60 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH5050A-X/1250-2500MHz 1.25-2.5 0.80 16.0 1.50 150
WH5050A-X/1350-2700MHz 1.35-2.7 0.60 17.0 1.35 150
WH5050A-X/1350-2900MHz 1.35-2.9 0.70 16.0 1.50 150
WH5050A-X/1400-2800MHz 1.4-2.8 0.60 17.0 1.35 150
WH5050A-X/1500-2500MHz 1.5-2.5 0.50 18.0 1.30 150
WH5050A-X/1500-3000MHz 1.5-3.0 0.60 17.0 1.35 150
