WH1620B

by Drop-in-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH1620B is a Drop in Circulator in Frequency Range of 6.0~18.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.50~1.50 dB and Isolation Min is 10.0~20.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 30 W.

Product Specifications

Product Details

  • Part Number
    WH1620B
  • Description
    6.0 to 18.0 GHz Drop in Circulator

General Parameters

  • Frequency Range
    6.0~18.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.50~1.50 dB
  • Isolation Min
    10.0~20.0 dB
  • Power
    30 W
  • VSWR Max
    1.30~1.90
  • Impedance
    50 Ω
  • Connector Type
    /

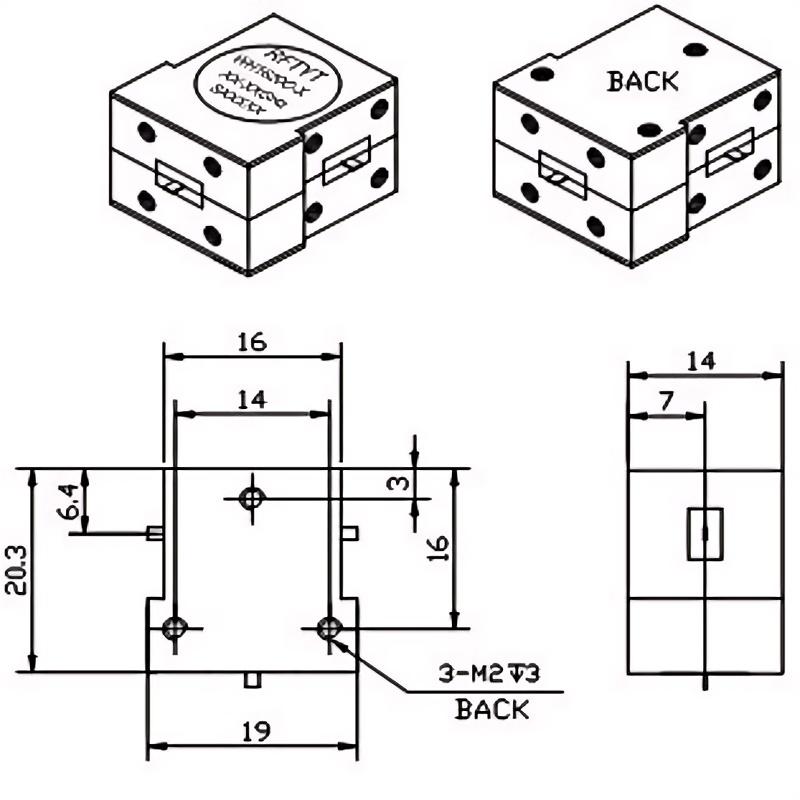

  • Size
    16.0*20.3*14.0 mm
  • Weight
    22 g
  • Operating Temperature
    -10~+60 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH1620B-X/6.0-18.0GHz 6.0-18.0 16.0-18.0 10.0 1.90 30
WH1620B-X/8.0-18.0GHz 8.0-18.0 1.40 12.0 1.60 30
WH1620B-X/12.0-18.0GHz 12.0-18.0 0.80 17.0 1.40 30
WH1620B-X/13.75-14.5GHz 13.75-14.5 0.50 20.0 1.25 30
WH1620B-X/14.5-16.5GHz 14.5-16.5 0.50 18.0 1.30 30
WH1620B-X/15.0-18.0GHz 15.0-18.0 0.60 18.0 1.30 30
WH1620B-X/16.0-18.0GHz 16.0-18.0 0.60 18.0 1.30 30
