MH0404-07

by Microstrip-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Circulator for global customers. MH0404-07 is a Microstrip Circulator in Frequency Range of 25.0~27.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 40%, Insertion Loss Max is 1.10 dB and Isolation Min is 18.0 dB. The component has a good working performance and stability, it is ideal for handling a Peak Power W@ Duty Cycle 25% of 2 W.

Product Specifications

Product Details

  • Part Number
    MH0404-07
  • Description
    25.0 to 27.0 GHz Microstrip Circulator

General Parameters

  • Frequency Range
    25.0~27.0 GHz
  • Bandwidth Max
    40%
  • Insertion Loss Max
    1.10 dB
  • Isolation Min
    18.0 dB
  • Peak Power W@ Duty Cycle 25%
    2 W
  • VSWR Max
    1.30
  • Impedance
    50 Ω
  • Connector Type
    Micro strip

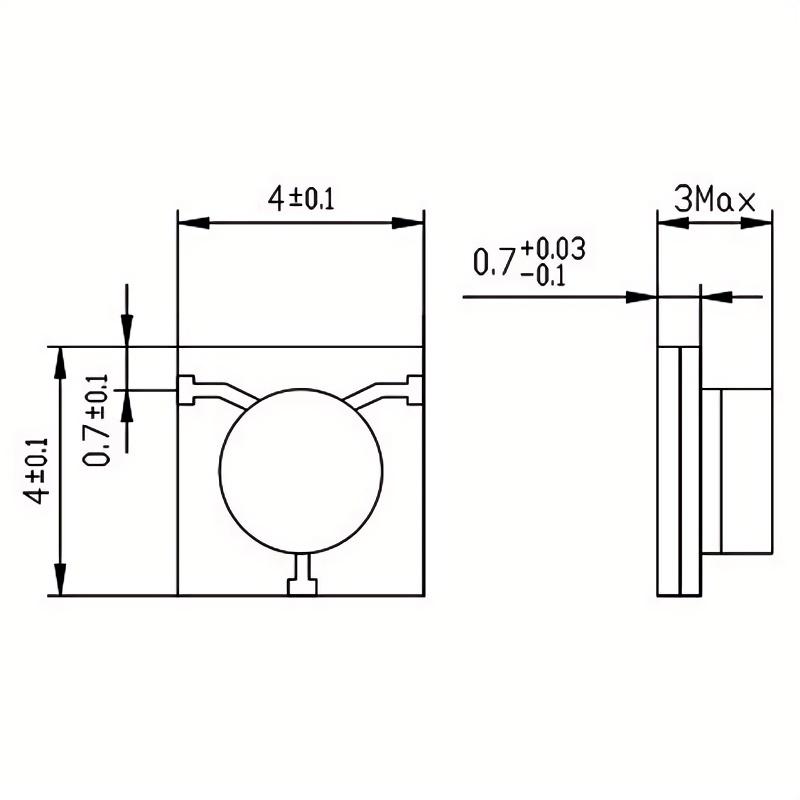

  • Size
    4.0*4.0*2.5 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Forward Power (CW) Choose
MH0404-07-X/12.0-18.0GHz 12.0-18.0 0.60 16.0 1.45 20
MH0404-07-X/16.0-18.0GHz 16.0-18.0 0.50 20.0 1.25 20
MH0404-07-X/17.5-19.5GHz 17.5-19.5 0.50 20.0 1.25 20
MH0404-07-X/18.5-20.5GHz 18.5-20.5 0.50 20.0 1.25 20
MH0404-07-X/19.5-21.5GHz 19.5-21.5 0.50 20.0 1.25 10
MH0404-07-X/17.0-21.0GHz 17.0-21.0 0.60 18.0 1.35
MH0404-07-X/18.0-22.0GHz 18.0-22.0 0.60 18.0 1.35 10
MH0404-07-X/20.0-22.0GHz 20.0-22.0 0.50 20.0 1.25 10
MH0404-07-X/20.0-24.0GHz 20.0-24.0 0.60 18.0 1.35 10
MH0404-07-X/21.0-23.5GHz 21.0-23.5 0.50 20.0 1.30 10
MH0404-07-X/22.0-24.0GHz 22.0-24.0 0.50 20.0 1.30 10
MH0404-07-X/23.0-25.0GHz 23.0-25.0 0.60 20.0 1.30 10
