MH3535-07

by Microstrip-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Circulator for global customers. MH3535-07 is a Microstrip Circulator in Frequency Range of 24.0~41.5 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.60~1.00 dB and Isolation Min is 15.0~20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 10 W.

Product Specifications

Product Details

  • Part Number
    MH3535-07
  • Description
    24.0 to 41.5 GHz Microstrip Circulator

General Parameters

  • Frequency Range
    24.0~41.5 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.60~1.00 dB
  • Isolation Min
    15.0~20.0 dB
  • Forward Power
    10 W
  • VSWR Max
    1.30~1.45
  • Impedance
    50 Ω
  • Connector Type
    Micro strip

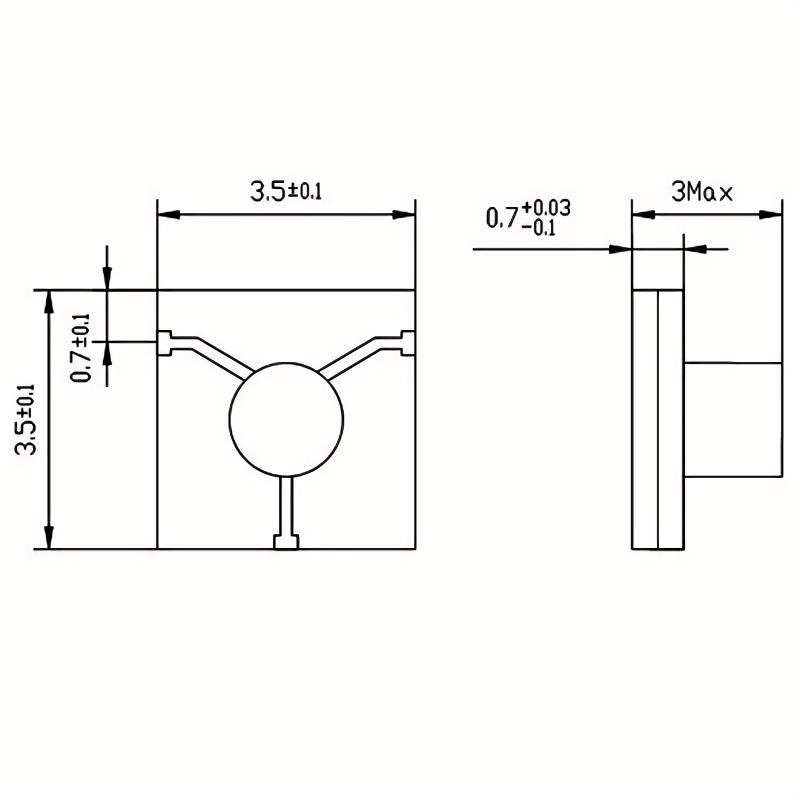

  • Size
    3.5*3.5*3.0 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Forward Power (CW) Choose
MH3535-07-X/24.0-27.5GHz 24.0-27.5 0.6 18.0 1.30 10
MH3535-07-X/27.0-29.5GHz 27.0-29.5 0.70 20.0 1.30 10
MH3535-07-X/29.0-31.5GHz 29.0-31.5 0.70 18.0 1.30 10
MH3535-07-X/26.0-28.5GHz 26.0-28.5 0.70 20.0 1.30 10
MH3535-07-X/27.0-31.0GHz 27.0-31.0 0.70 18.0 1.35 10
MH3535-07-X/28.0-33.0GHz 28.0-33.0 0.70 18.0 1.35 10
MH3535-07-X/33.0-37.0GHz 33.0-37.0 0.80 18.0 1.35 10
MH3535-07-X/32.0-36.0GHz 32.0-36.0 0.80 18.0 1.40 10
MH3535-07-X/35.0-38.0GHz 35.0-38.0 0.80 18.0 1.40 10
MH3535-07-X/32.0-38.0GHz 32.0-38.0 1.00 15.0 1.45 10
MH3535-07-X/37.5-41.5GHz 37.5-41.5 1.00 18.0 1.40 10
