BH4444-WR75

by Waveguide-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Circulator for global customers. BH4444-WR75 is a Waveguide Circulator in Frequency Range of 10.0~15.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 5/10/100%, Insertion Loss Max is 0.25~0.30 dB and Isolation Min is 23.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BH4444-WR75
  • Description
    10.0 to 15.0 GHz Waveguide Circulator

General Parameters

  • Frequency Range
    10.0~15.0 GHz
  • Bandwidth Max
    5/10/100%
  • Insertion Loss Max
    0.25~0.30 dB
  • Isolation Min
    23.0~25.0 dB
  • Forward Power
    /
  • VSWR Max
    1.12~1.20
  • Impedance
    50 Ω
  • Connector Type
    WR75
  • Size
    44.5*44.5*38 mm
  • Weight
    /
  • Operating Temperature
    -30~+75 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes


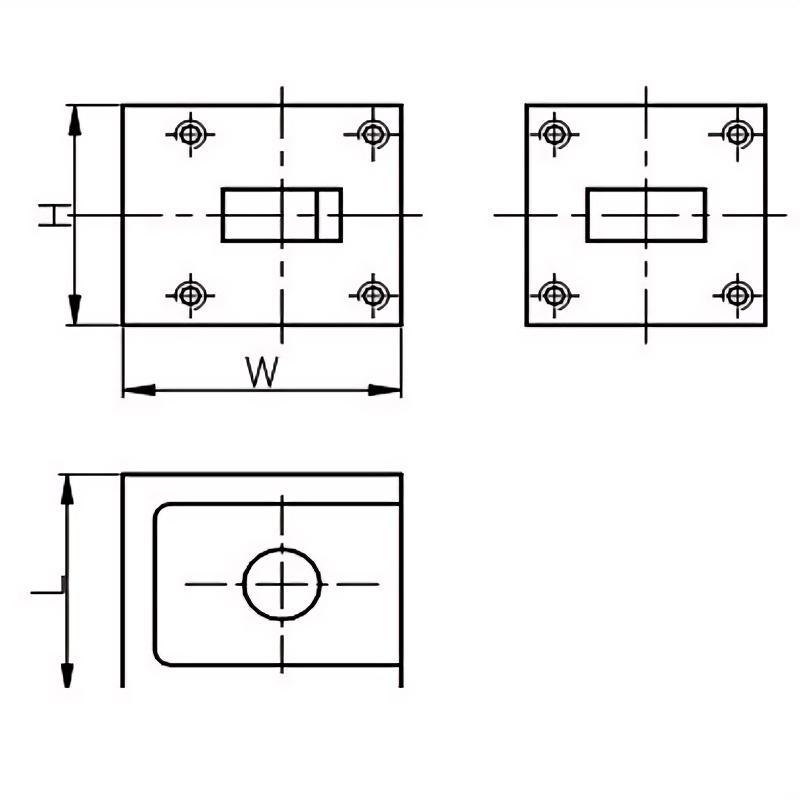

Technical Documents

Specifications

Part Number Frequency Range (GHz) Bandwidth Insertion Loss Max (dB) Isolation Min (dB) VSWR (Max) Choose
BH4444-WR75/10.0-15.0GHz 10.0-15.0 5% 0.25 25.0 1.12
BH4444-WR75/10.0-15.0GHz 10.0-15.0 10% 0.25 23.0 1.15
BH4444-WR75/13.9-14.6GHz 13.9-14.6 FULL 0.30 23.0 1.20
BH4444-WR75/14.0-15.0GHz 14.0-15.0 FULL 0.30 23.0 1.20
