MH0505-08-10-15

by Microstrip-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Circulator for global customers. MH0505-08-10-15 is a Microstrip Circulator in Frequency Range of 10.0~15.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.60 dB and Isolation Min is 16.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 2.5 W.

Product Specifications

Product Details

  • Part Number
    MH0505-08-10-15
  • Description
    10.0 to 15.0 GHz Microstrip Circulator

General Parameters

  • Frequency Range
    10.0~15.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.60 dB
  • Isolation Min
    16.0 dB
  • Forward Power
    2.5 W
  • VSWR Max
    1.40
  • Impedance
    50 Ω
  • Connector Type
    Micro strip

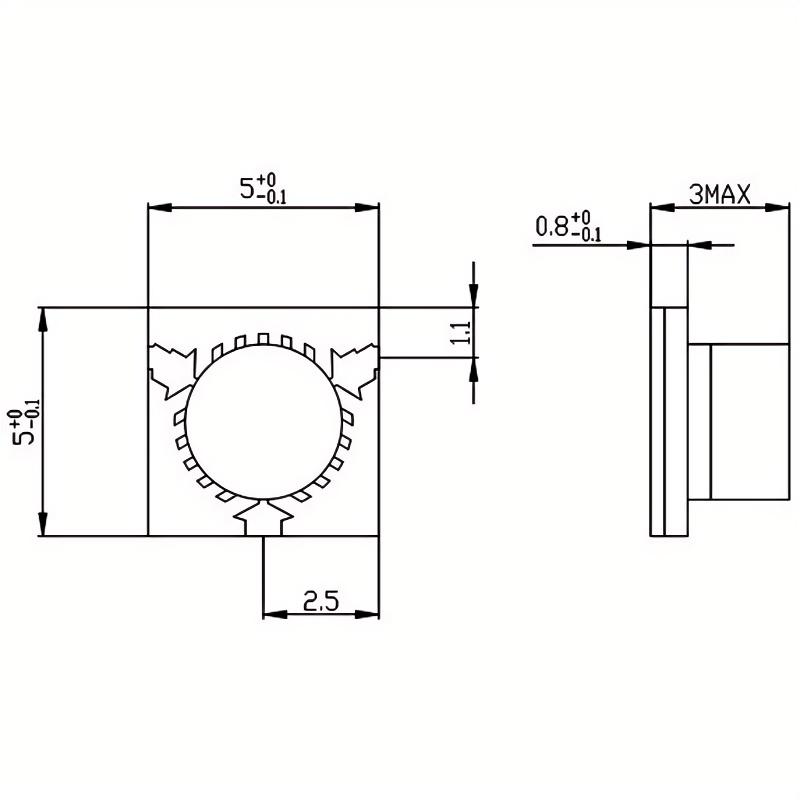

  • Size
    5.0*5.0*3.0 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
